對流層合成霧滴噴灌帶醫衛組

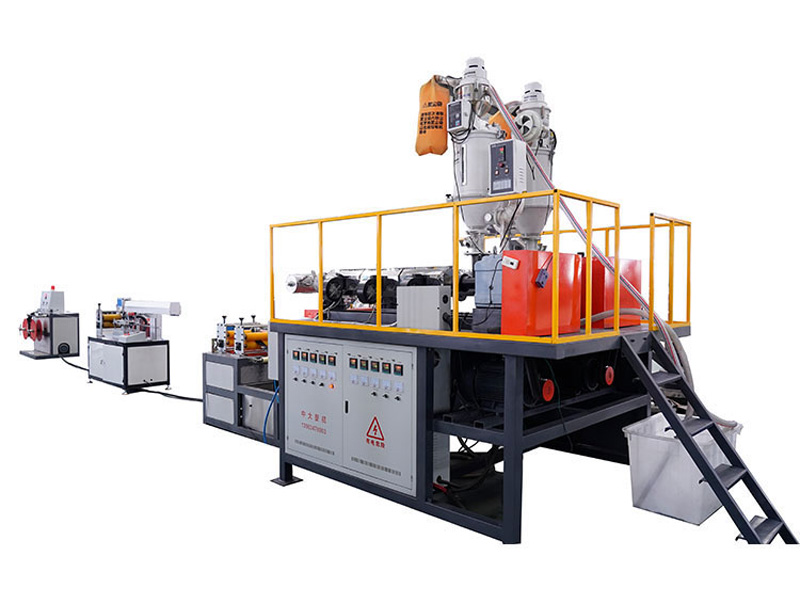

一：Production line component (霧滴噴灌帶生產線構成)
No. | Device | Quantity |
1 | SJ-50/30 extruder | 2 set |
2 | Automatic material feeding and drying system | 2 set |
3 | Two layers die- head | 1 set |
5 | Vacuum water tank | 1 set |
6 | Cooling water tank | 1 set |
7 | Tractor | 1 set |
8 | Punching system | 1 set |
9 | Winding machine | 1 set |
10 | Electric cabinet 家用電器櫃 | 1 set |

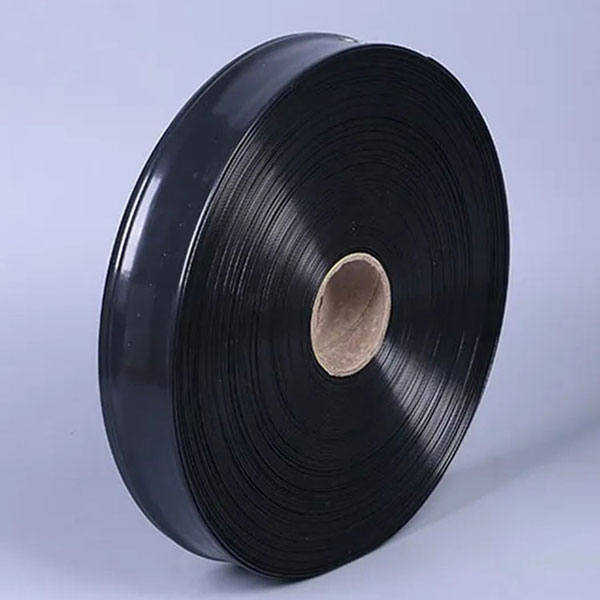

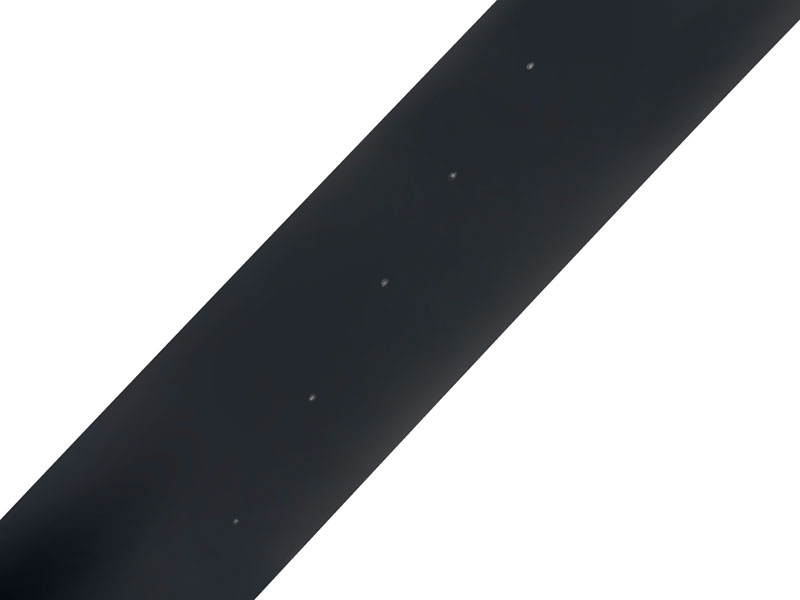

霧滴噴灌帶
二：重點技術形式參數（Main technical parameters）
Production speed | 0-50m/min |
Punching speed | 0-50m/min |
Puching type | Laser punching |
Puching holes | 1-10holes |
Specification for tape | Ø28.5 32 40 50 63 75 90 |
Thickness of the tape | 0.2-0.6mm（adjustable） |
Materials | LDPE,HDPE |
Overall dimension | 12m*2.5m*3.6m |
Total weight 總量體重 | 4000kg |
